Davey deck ring bolts

Manganese Bronze/Brass Ring Bolt

$56.10
(1 review) Write a Review
SKU:
DVY-1760/MB/10

Description

Brass bolts turned from solid bar and forged manganese bronze shackles combine to provide a unique fitting designed for high loads in the marine environment.

Available in two finishes and three sizes up to 2 tonnes breaking load, this range of ring bolts offers security and reliability for many applications on and around the boat.

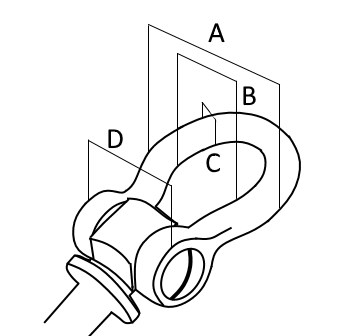

SKULengthBoltShackle (C)Shackle ID (B)Shackle OD (A)Shackle Pin (D)Breaking Load  (approx)
DVY-1760/MB/10
& DVY-1760/CP/10
3" (75mm) 3/8" x 3" (10mm x 75mm) 1/4" (6mm) 7/8" (22mm) 1-3/8" (34mm) 1-1/8" (28mm) 800kg
DVY-1760/MB/11
& DVY-1760/CP/11
3-1/2" (88mm) 7/16" x 3-1/2" (11mm x 90mm) 5/16" (8mm) 1-1/8" (28mm) 1-3/4" (44mm) 1-5/16" (33mm) 1,200kg
DVY-1760/MB/12
& DVY-1760/CP/12
4" (100mm) 1/2" x 4" (12mm x 100mm) 3/8" (10mm) 1-1/4" (31mm) 2" (50mm) 1-5/8" (41mm) 2,000kg

bronze deck shackle
